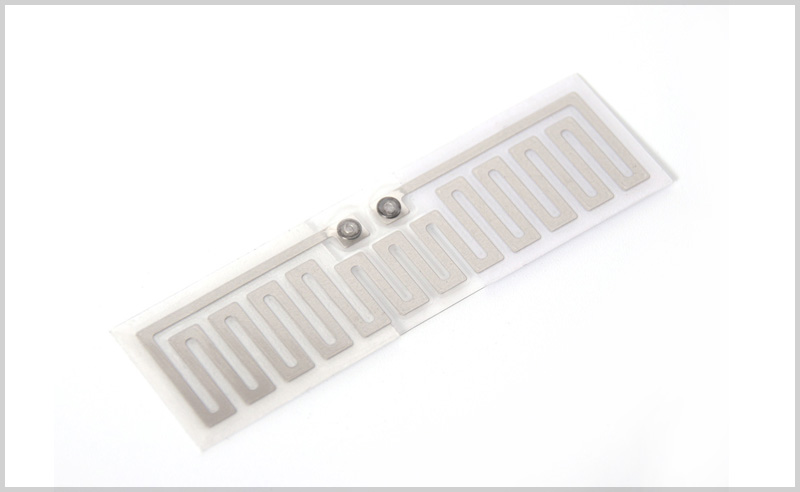

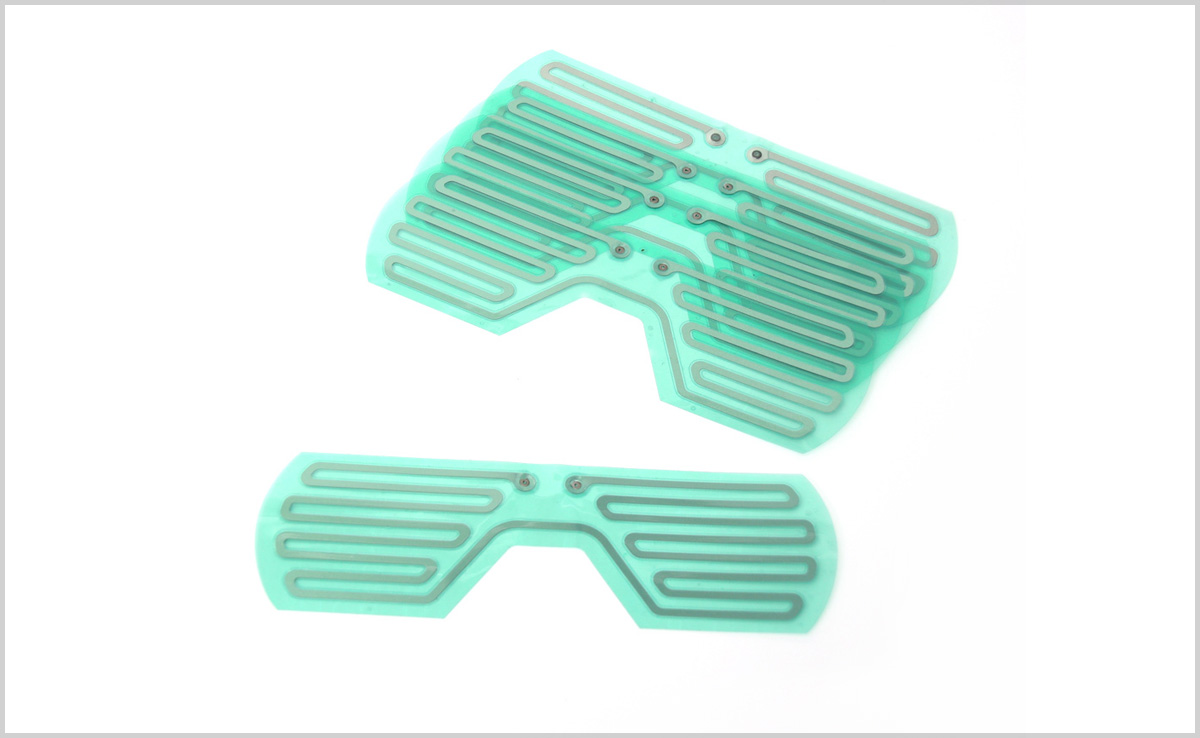

Polyester Heater
Polyester heater adopt polyester film as insulating surface.The polyester film is thin, light weight and suitable for harsh environments and the normal color is transparent and other colors are also available for choosing and the resistance is virtually constant up to 100℃ and it allows heated elements to have superior heat transfer and exceptionally uniform heat output, which results in a faster warm-up cycle and long life. The interlayer of the polyester heater adopt etched metal foil.
Main Specifications:
| Heating Material | Stainless steel, Copper, Alloy, Graphene |
|---|---|
| Insulating material | Polyester film |
| Temperature |
≤130℃/266℉(Intermittent) / ≤80℃/176℉(Continuous) |
| Votage | 3.7V~400V(Customizable) |
| Electrical Resistance | ≥0.1Ω(Customizable) |
| Power Consumption | Customizable |
| Thickness | 0.15mm~0.3mm（Customizable） |
| Size | Customizable |
| Shape | Round, Square, Rectangle and other special shapes customizable |
| Adhesive | Optional |
| Electrical termination | Leadwires(Standard), Solder pads, Connector |
| Leadwires configuration | Length and Conductor size customizable |
